<transcy>正常價格</transcy> ¥2,965.00 <transcy>銷售價格</transcy> ¥2,142.00 In Stock

•  DisplayPort 1.4

•  Intel 'Titan Ridge' Thunderbolt 3 chipset

•  4 x USB 3.0 Type-A

•  2 x USB-C 3.1 Gen 2 Type-C

•  1 x 0.5 meters thunderbolt 3 cable included

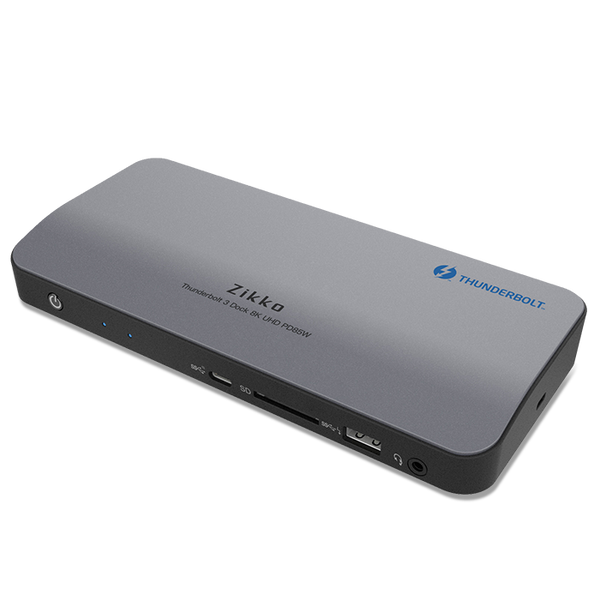

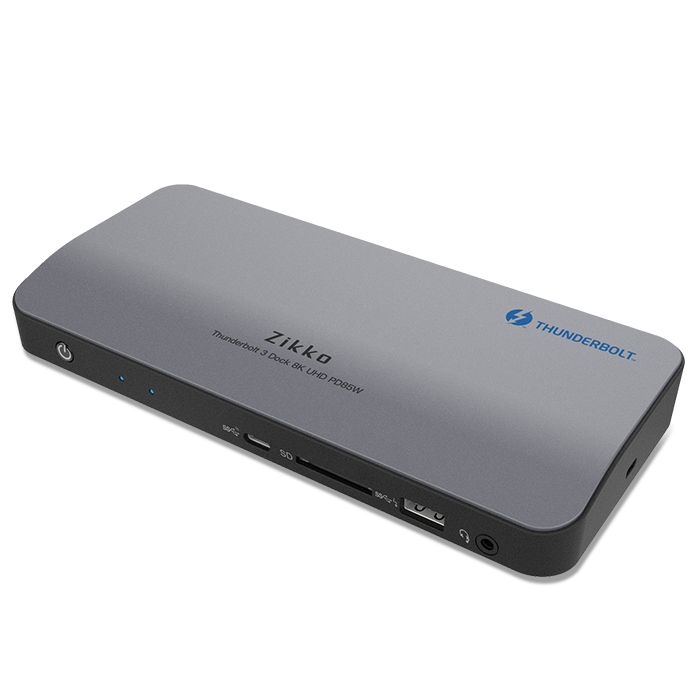

Thunderbolt 3 docking station

Zikko Thunderbolt 3 PD85W 8K UHD Docking Station (Model: M-TBD185) is specially designed for the computer with Thunderbolt 3-port to meet the needs of external connection. It is the intelligent and high-speed docking product integrating Thunderbolt 3, USB 3.1 & 3.0, DisplayPort 1.4, RJ45 (network interface), speaker & microphone as well as SD card, and is equipped with a power input port of up to 180W. It adopts the PD charging technology to recharge for the upper stream devices via Thunderbolt 3 interface and provide long-lasting power for the notebook while providing video output. Built-in driver, plug and play, it doesn't need to install other drivers.

Multi ports

Meet various professional requirements

1. On/Off

2. Signal indicator

3. Power indicator

4. USB-C 3.1 Gen 2 port (10Gbps)

5. UHS-II SD Card port

6. USB-A 3.0 port (5Gbps)

7. 3.5mm earphone/mic port

8. USB-A 3.0 port (5Gbps)

9. Gigabit Ethernet

10. USB-C 3.1 Gen 2 prot (10Gbps)

11. DisplayPort 1.4 port (8K @30Hz, 5K@60Hz)

12. Thunderbolt 3 port (40Gbps, support USB-C)

13. Thunderbolt 3 port PD 85W charging (40Gbps,support USB-C)

14. DC-IN (180W input, 20V/9A)

Zikko Thunderbolt 3 Docking Station

Suitable for the following professionals need stability and reliability.



Dual system support provides wider compatibility

Mac/Windows

Support MacOS High Sierra 10.13.6 and more

Support Windows 10 and more

Aluminum alloy process Sophisticated design

Use aluminum alloy shell, durable, fast heat dissipation Simple and stylish appearance is more suitable for office scenes

85W Power supply Thunderbolt 3 cable included

180W Power in Provide sufficient power for various ports.

Provide 85W for your PC or laptop.

The 0.5m thunderbolt 3 cable, supply 40 Gbps transfer speed.

Daul port both support 8K display

The Thunderbolt 3 devices can be connected to an 8k display through the DP port or thunderbolt port, smoother the gameplay and movie.

Package

Package list

1. Package box

2. 40Gbps thunderbolt 3 cable(0.5m)

3. Docking station

4. Power supply

5. AC cable

DP1.4 Port Future trend

Experience smoother gameplay, design and movie

8K Support
Resolution:  Monitors:           Remark:
8K@30Hz     1 TBT Port support 1 monitor
4K@30~60Hz     8 TBT Port support 1 monitor; DP Port support 1 monitor; 3 USB3.0 each port connect USB to Dual DP/HDMI Adapter support 6 monitors (DisplayLink 4K).
2K@144~240Hz     2 TBT Port support 1 monitor; DP support 1 monitor.
2K@60Hz     8 TBT Port support 1 monitor; DP Port support 1 monitor; 3 USB3.0 each port connect USB to Dual DP/HDMI Adapter support 6 monitors (DisplayLink 4K).
1080P@144~240Hz     2 TBT Port support 1 monitor; DP support 1 monitor.
1080P@60Hz     8 TBT Port support 1 monitor; DP Port support 1 monitor; 3 USB3.0 each port connect USB to Dual DP/HDMI Adapter support 6 monitors (DisplayLink 4K).

Note:

1. Connect to 8 monitors max when less than 1080P.

2. Displaylink support 60Hz max, TBT3 Port support 240Hz max.

3. There may be some differences in the notebook.

Specifications

Model: M-TBD185
Thunderbolt 3 port:Transmission speed 40Gbps (Max). Support PD85W output
USB-C 3.1 port:Transmission speed 10Gbps (Max). Support USB 3.0, USB 2.0
USB-A 3.0 port:Transmission speed 5Gbps (Max). Support USB 2.0
DisplayPort:DP 1.4, Video Resolution Support up to 8K
( 7680x4320 @ 30Hz )
Gigabit RJ45 Ethernet portSupports 10/100/1000M
Earphone: Support stereo output and microphone input
Power input: DC 20V/9A 180W
Cable:US/UK/JP plug charger adapter, 0.5 meters Thunderbolt cable
Working Temperature 0℃~35℃
MaterialAluminum panel & ABS
Size 230*80*26mm
Weight 1210 g
Available Colors Grey
